HPSS, Sales Sheet
| Water Flow Rate | 3.5 GPH (per nozzle @ 500 PSI) |
| Number of Nozzles | 5–10 nozzles per kiln bay |
| Unit Kiln Capacity | Each system serves 2 kilns |
| Motor HP | 3 HP |
| Operating Pressure | 500 PSI |
| Dimensions (W × D × H) | 40" W × 24" D × 38" H |
| Weight | 150 lbs |
| Power Requirements | 480V Three Phase, 60 Hz, Dedicated 15A Required |
| Boiler Reduction | Reduces boiler dependence by increasing wet bulb temperature — cuts demand for boiler chemicals and water |
| Compatible With | Any conventional or dehumidification kiln |

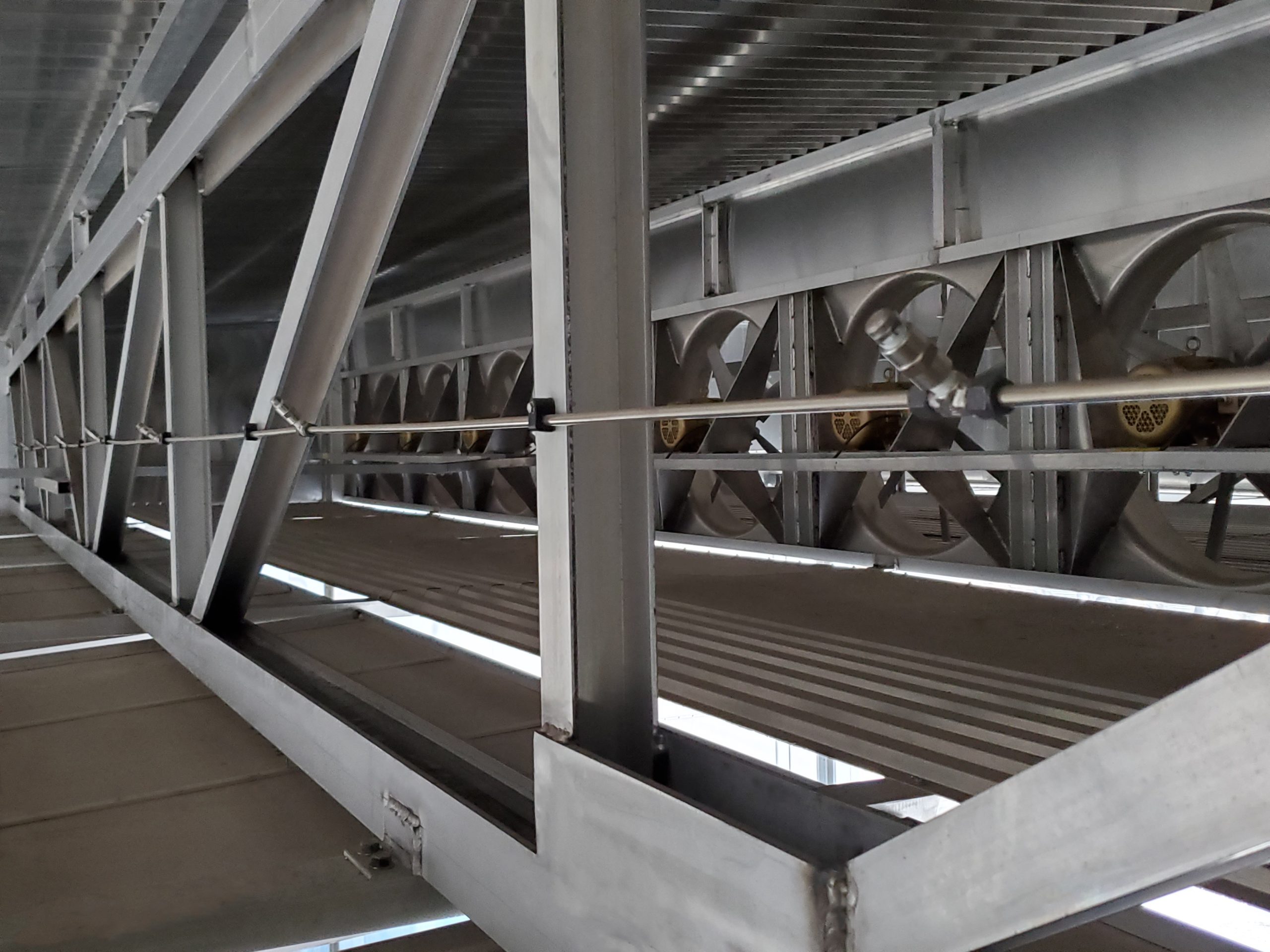

The system atomizes water through high-pressure nozzles (operating at 500 PSI) to add precise amounts of humidity directly into the kiln chamber. It controls moisture levels throughout the drying cycle to prevent over-drying. At the end of the cycle, it reintroduces moisture to the wood surface for conditioning — reducing stress and improving the quality of the final product.
Each system serves 2 kilns, with 5–10 nozzles per kiln bay, depending on the setup.
The system requires 480V three-phase, 60 Hz, with a dedicated 15A circuit.
The High Pressure Spray System is designed for Nyle's larger commercial kilns and is not compatible with the L-Series units.
The L-Series has its own separate, dedicated spray system package designed specifically for those smaller dehumidification kilns.
